Description
Dimensions 107 x 70 x 21 mm (4.2 x 2.8 x 0.8″)

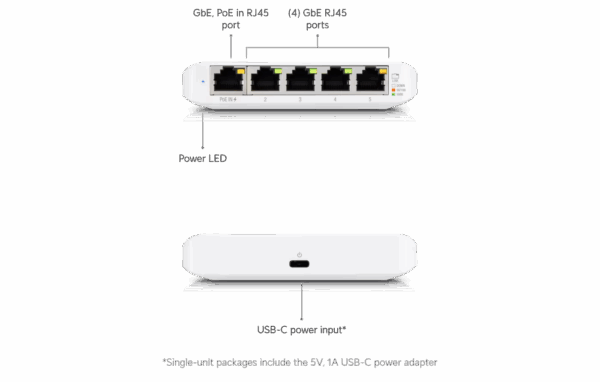

Port Layout 1 GbE RJ45 5 (1G/100M/10M)
Form Factor Compact desktop
Switching Capacity 10 Gbps
Total Non-Blocking Throughput 5 Gbps
Forwarding Rate 7 Mpps
Supported VLANs 1,000
MAC Address Table Size 2,000
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
Max. Power Consumption 2.5W

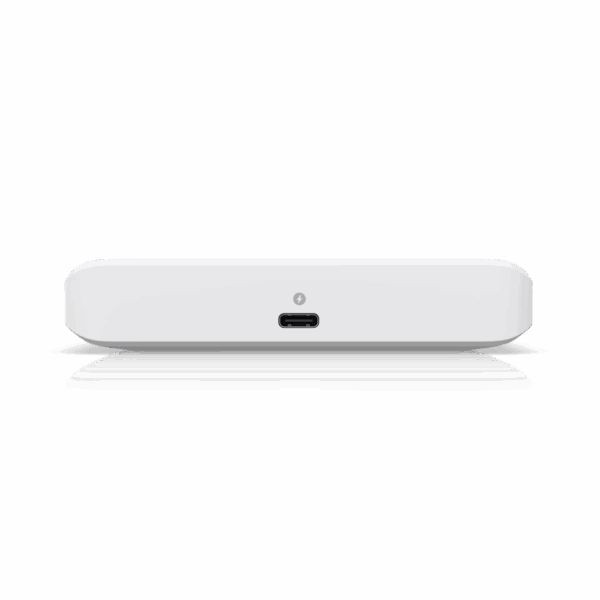

Power Method (1) USB Type-C, 5V DC, 1A (1) PoE
Power Input Method USB Input PoE
Power Supply AC/DC, external, 5W
Supported Voltage Range 4.8—5.2V DC/USB 44V—57V PoE
Management Ethernet
Heat Dissipation (Excluding PoE Output) 6.824 BTU/hr
Weight 150 g (5.3 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
ESD Protection Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature -5 to 45° C (23 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
NDAA Compliant ✓
Certifications CE, FCC, IC, Anatel
Application Requirements
UniFi Network Version 5.12.5 and later
